Industrial Chillers >> Brine Chillers

Brine Chillers / Glycol Chillers / Low Temp. Chillers

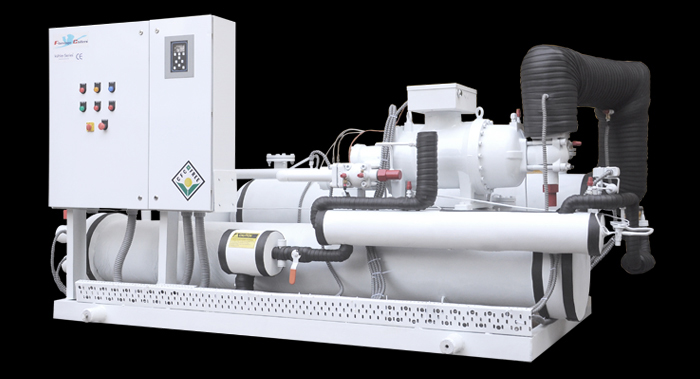

Water Cooled Brine / Low Temperature Screw Chillers

Semi hermetic screw compressor with in-built motor
Refrig : R-404A / R-507A (CFC Free), R-22 (Freon)
Brine/Glycol Temp. range - Minus 5 to Minus 45 deg. C
Available with choice of Hanbell, Bitzer & J&E Hall Screw Comp.

water cooled brine chillers



Water Cooled Screw Chiller for Process Cooling

Semi hermetic open screw compressor with external motor
Refrig: R-22 R-407C R-134A R-404A / R-507A (CFC Free),
Brine/Glycol/Water Temp. range - Plus 25 to Minus 45 deg. C
Available with choice of Hanbell, Bitzer & J&E Hall Screw Comp.

ammonia chillers



Air Cooled Screw Chiller for Process Cooling

Semi hermetic screw compressor with in-built motor

Refrig: R-134A (CFC Free),R- 407C (CFC Free), R-22 (Freon)
Liquid Temperatures - Minus 15 to Plus 25 deg. C
Available with choice of Hanbell, Bitzer & J&E Hall Screw Comp.

air cooled screw chiller



Water Cooled Ammonia Screw Chiller

Semi hermetic open screw compressor with external motor
Refrigerant: R-717 (Ammonia), Evap. Cond. option available
Brine/Glycol/Water Temp. range - Plus 15 to Minus 45 deg. C
Available with choice of Hanbell, Bitzer & J&E Hall Screw Comp.

ammonia chillers



Brine Chillers

Brine Chillers / glycol chillers / low temperature chillers are designed for cooling brine / glycol / liquid refrigerant (dx. applications) to ultra low temperatures of upto Minus 50 deg. C (evap. temp.). The design includes a semi hermatic screw compressor with internal / extranal motor , high efficiency 3 stage oil seperation system, accumulator, evaporator, condenser and economiser. Extensively used in pharmaceutical, chemical and food & beverage industry, Flamingo has a range dedicated to each application area.

When in need of cooling medium for your food-processing unit, the best thing that you can opt for is salt water for the chilling system. Salt water used in the refrigeration system as it remains in a liquid state even when the temperature us much below zero. We cater chilling systems that use salt water for effective cooling. You can utilize the chilling systems catered by us can across different industries. We use the finest quality of raw material for manufacturing the refrigerating unit. We guarantee the quality of the product as we abide by the highest quality maintained as per the industry standards.

Brilliant designs of devices

Our brine chillers are designed such that the salt water or the glycol that are used as the cooling liquid used in the process remains liquid even at minus fifty-degree centigrade. Excellent craftsmanship is reflected through the design of the cooler. Our cooling systems have three steps for separation of oil, internal and external motor, condenser, evaporator and accumulator. Clients can choose the screw compressor for the cooling system. We have a wide range of refrigerating system in store as we also manufacture these. Be it the pharmaceutical company or for the food processing units, our systems are applicable for all.
